Verkline Rear Camber Arms R4 – Lancer EVO X

Description

Verkline Rear Camber Arms R4 – Lancer EVO X

Product Ref: WAS-810

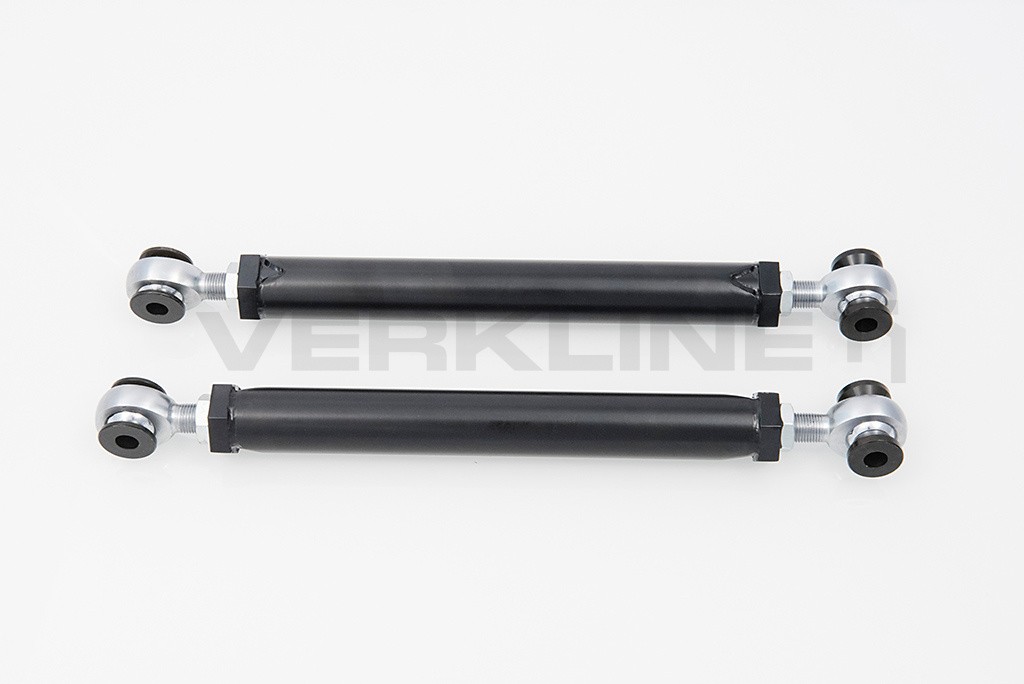

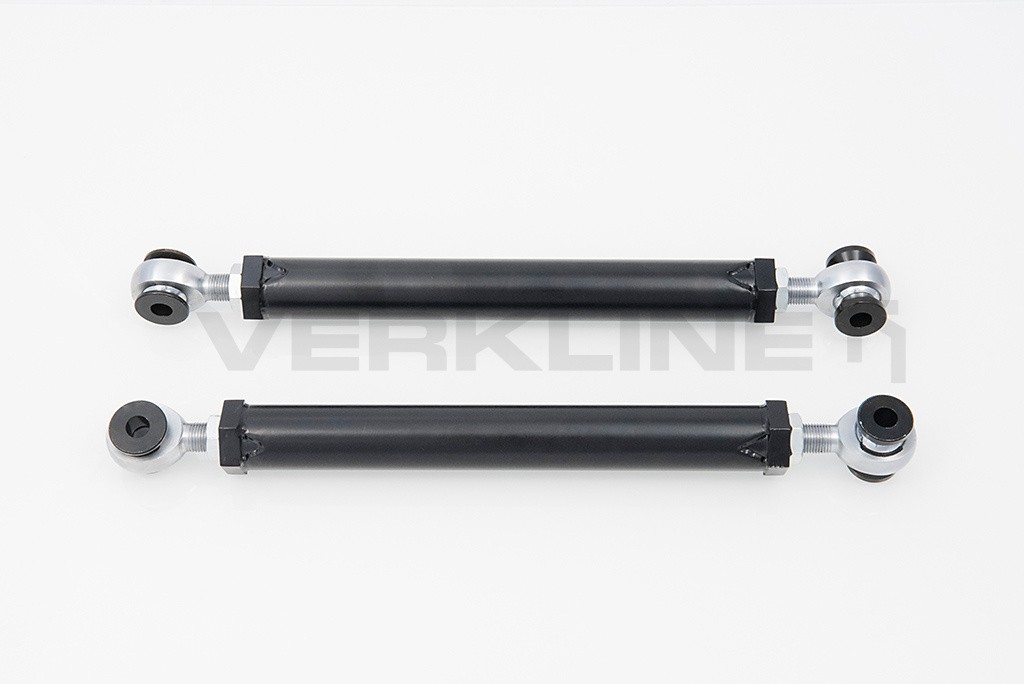

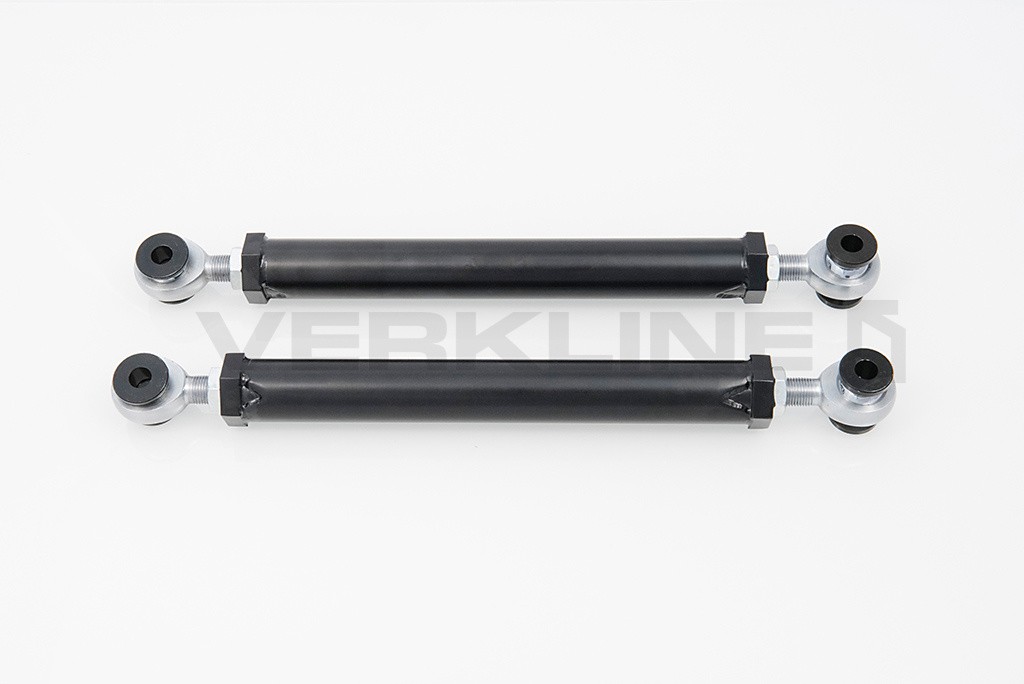

Mitsubishi Lancer EVO X Rear Camber Arms

The kit consists of:
– Rear light steel T45 35 mm rear toe link wishbones (left + right)
– Two arm fixing C45 steel mounts
– Four M16 motorsport rod ends solid
– Four M16 half size screw locking nuts
– Four spacer sleeves for assemble of the arms in the rear subframe

Features:
– R4 spec rear suspension arm
– Comes preassembled ready for fitment in the car
– R4 rally kit compliant (meats FIA homologation rules for Lancer EVO X)
– Same rod end suppler as for original R4 kit
– Allows massive increase in toe adjustment
– Greater strength over OEM wishbones

Technical details
– Full 3D CAD designed
– FEA Tested and additional reinforcement to the original design was made
– Manufactured from T45 steel
– Powder coated black

Wishbones are Powder coated in black as standard. Other colour options available at additional cost at customer request. RAL paint code must be provided.
