Verkline Mitsubishi Lancer EVO IV-IX – Rear Tubular Subframe
Product Ref: WAS-902

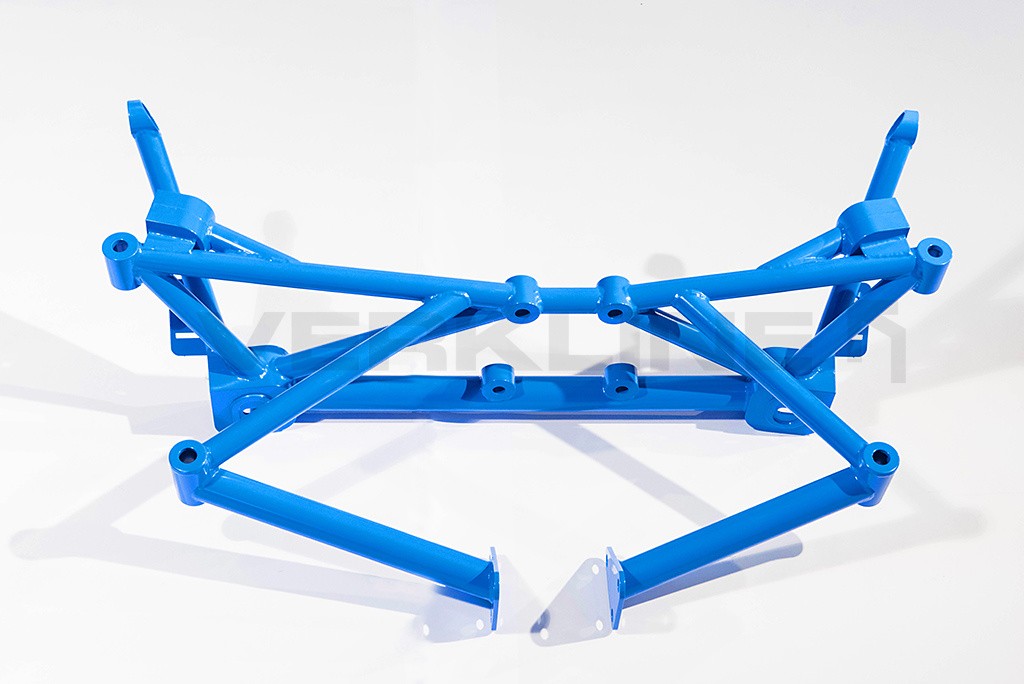

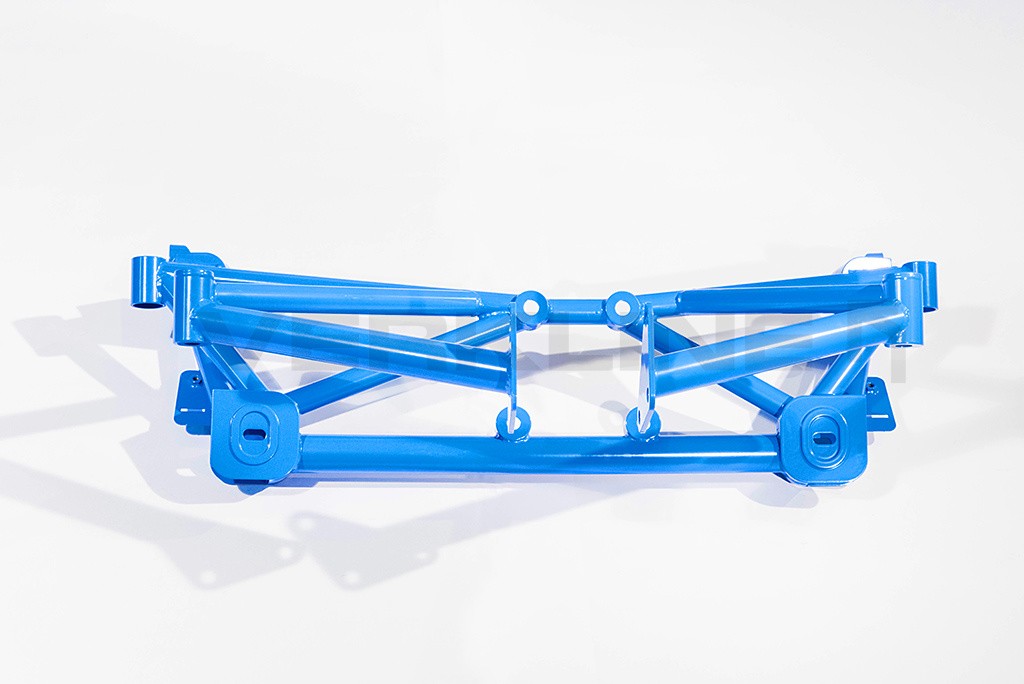

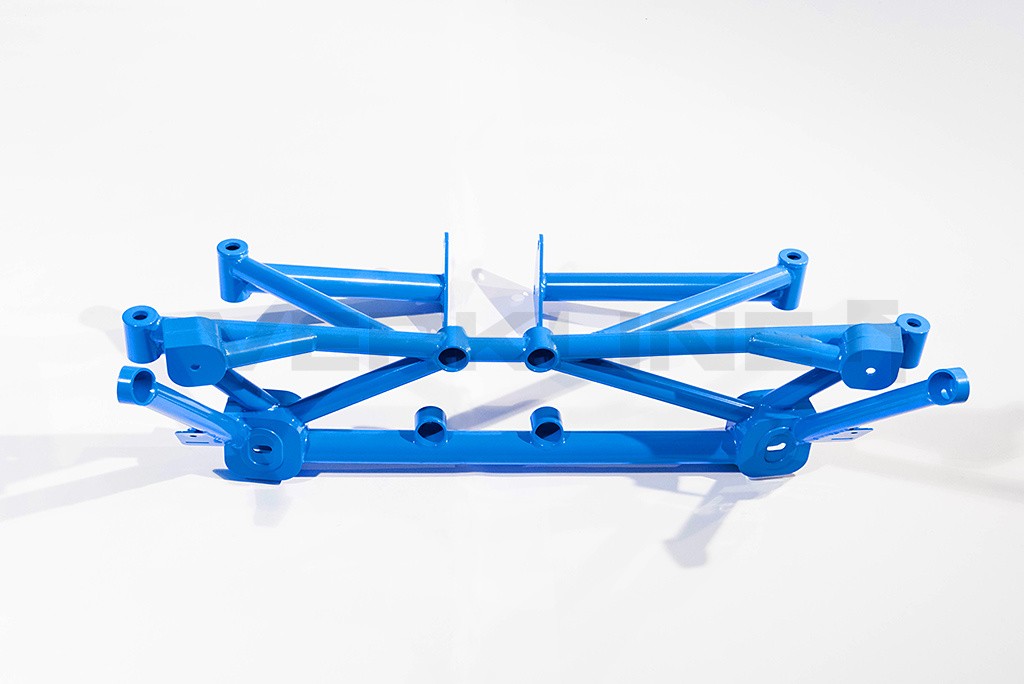

Mitsubishi Lancer EVO IV-IX – Rear Lightweight Tubular Subframe
The kit consists of:
– Rear Light weight Tubular Subframe
– Rear Anti-roll Bar mounts for the subframe
Technical details
– Mountings to the chassis using are on standard attachment points
– Full 3D CAD designed
– FEA Tested and additional reinforcement to the original design was made
– Manufactured from T45 tubing, C45 milled steel and S355 sheet steel
– TIG Welded

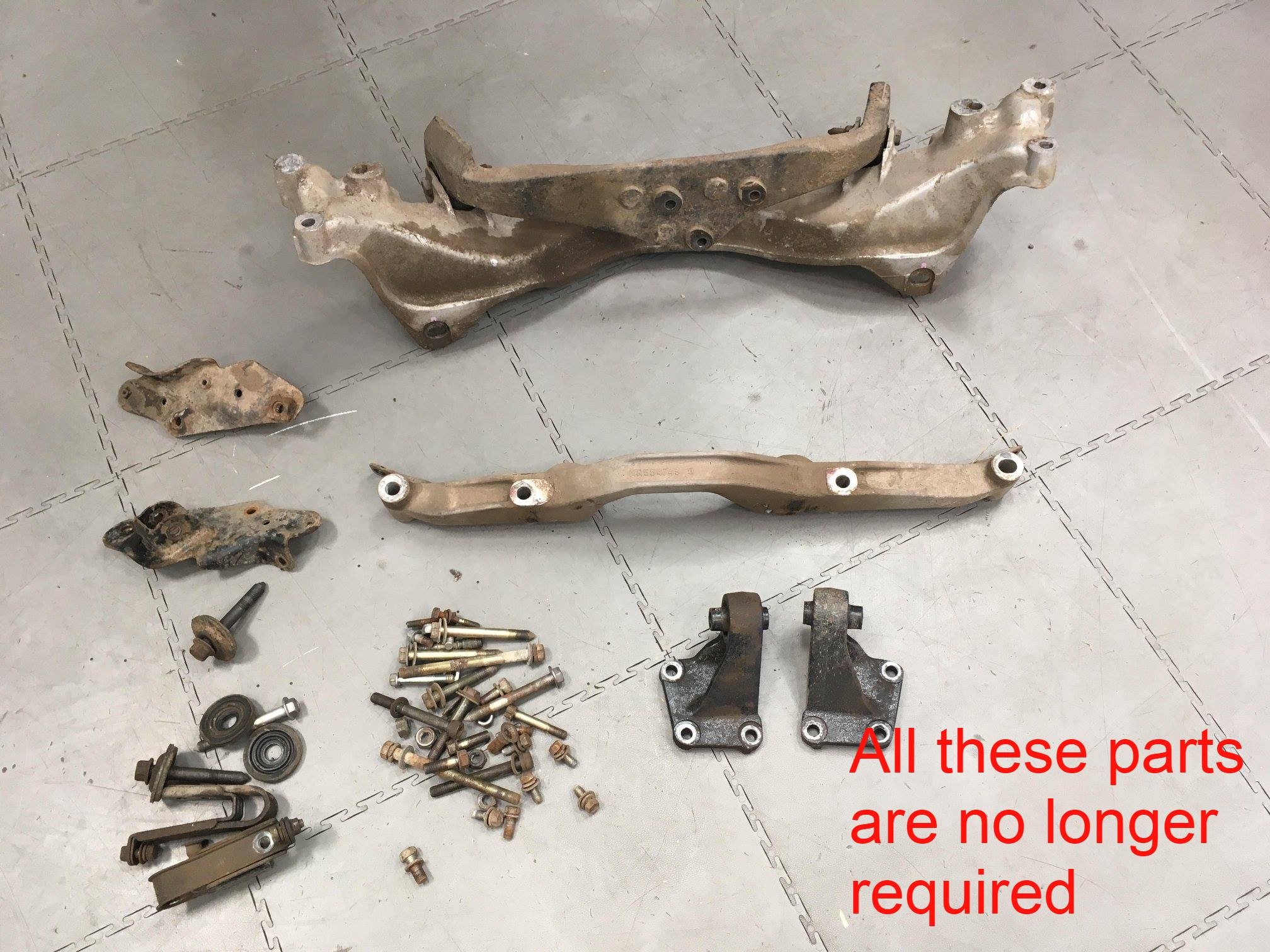

Rear tubular subframes provide saving of 20 kg on the car over same OEM components. The subframe weights 9,40 kg. Designed for RS rear axle.
Subframes are Powder coated in black as standard. Other colour options available at additional cost at customer request. RAL paint code must be provided.
