Verkline Front Tubular Wishbones – Lancer EVO VII-IX

Description

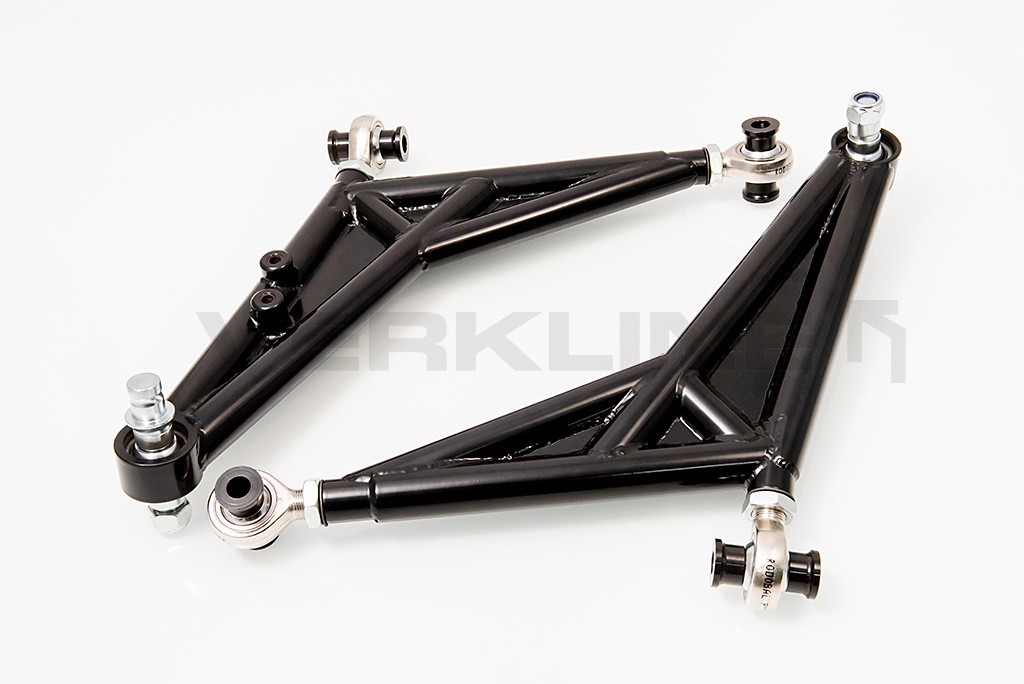

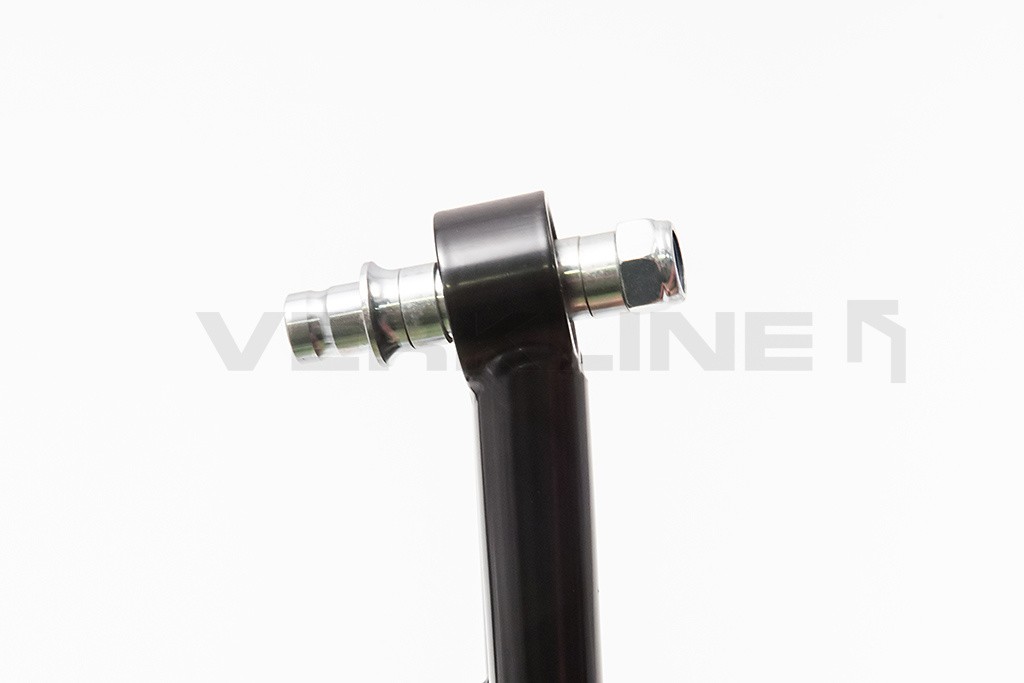

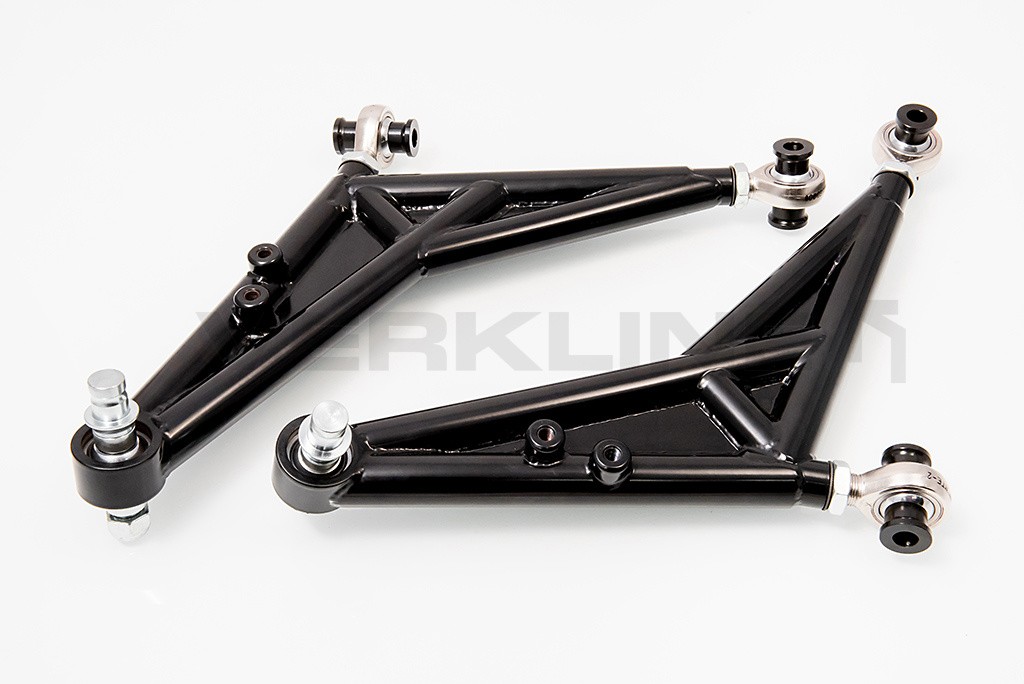

Verkline Front Tubular Wishbones – Lancer EVO VII-IX Product Ref: WAS-903-904 Mitsubishi Lancer EVO VII-IX Front Tubular Wishbones The kit consists of: – Front light weight tubular wishbones (left + right) – Two standard height pins for uprights. – Two extended height pins for uprights. – Four M18 Motorsport C0 tight fit rod ends. They are made in Europe, not in China. – Four M18 half size screw locking nuts. – Four spacer sleeves for assemble of the rod ends in the front subframe. – Two M22 Teflon lined spherical plain motorsport C0 tight fit bearings vibration/resonance resistant. Features: – Comes preassembled ready for fitment in the car – Pin is tilted to allow more suspension travel – Allow increased caster and camber adjustment – Can be used with standard front subframe – Greater strength over OEM wishbones Technical details – Full 3D CAD designed – FEA Tested and additional reinforcement to the original design was made – Manufactured from T45 tubing and S355 steel – Pins made from 42CrMo4+QT and KTL coated – All TIG Welded OEM wishbone weight is 3.10 kg. Our wishbones are 2.95 kg but provide much more rigidity. Wishbones are Powder coated in black as standard. Other colour options available at additional cost at customer request. RAL paint code must be provided.
