Description

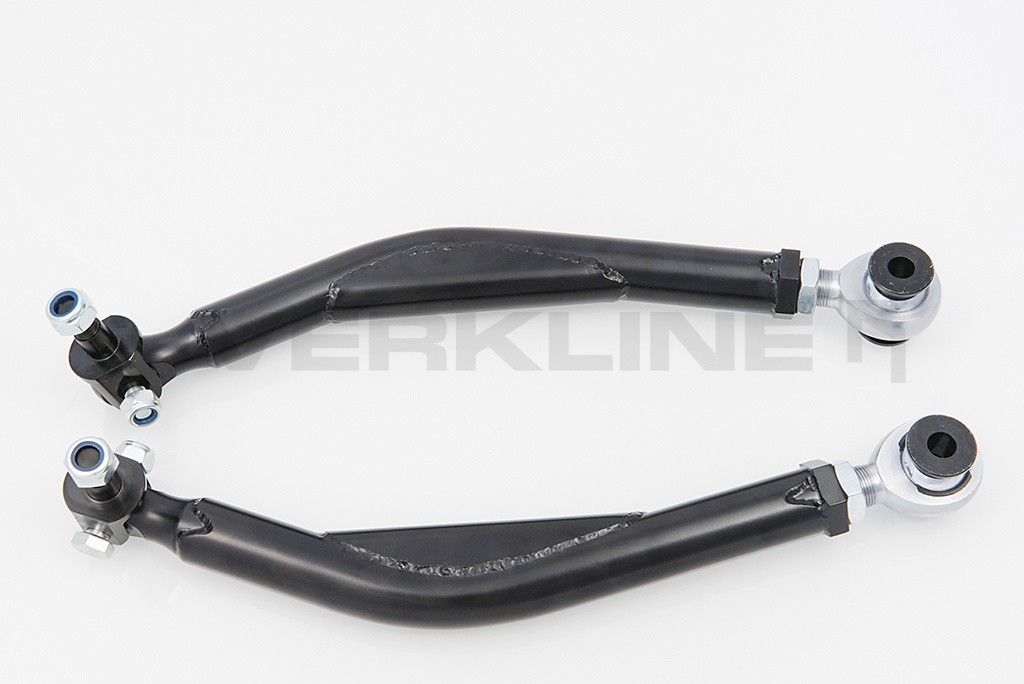

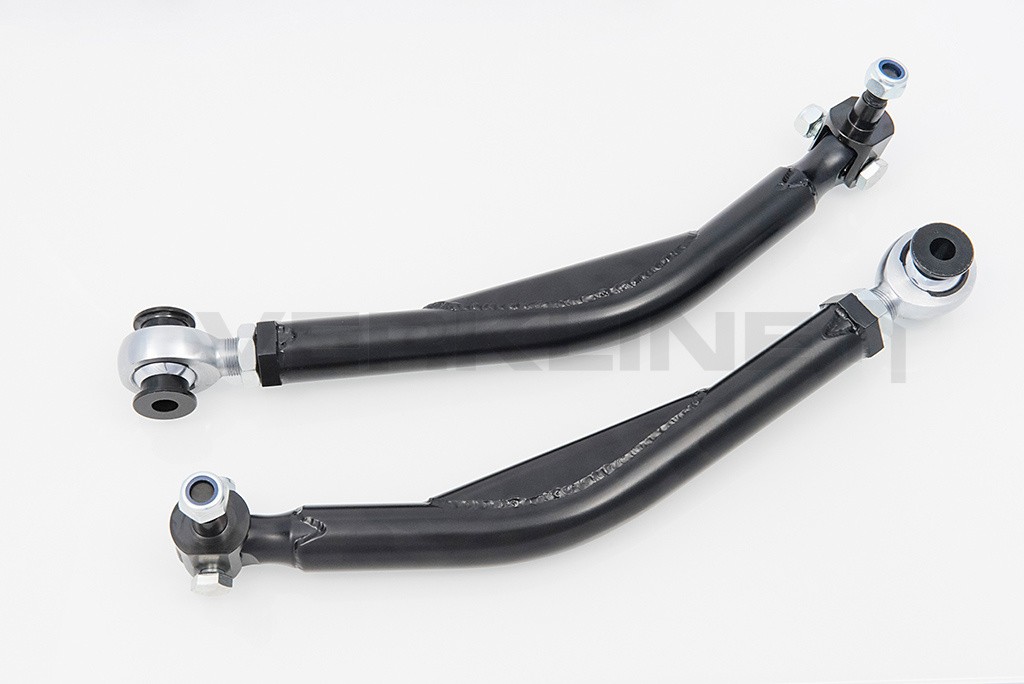

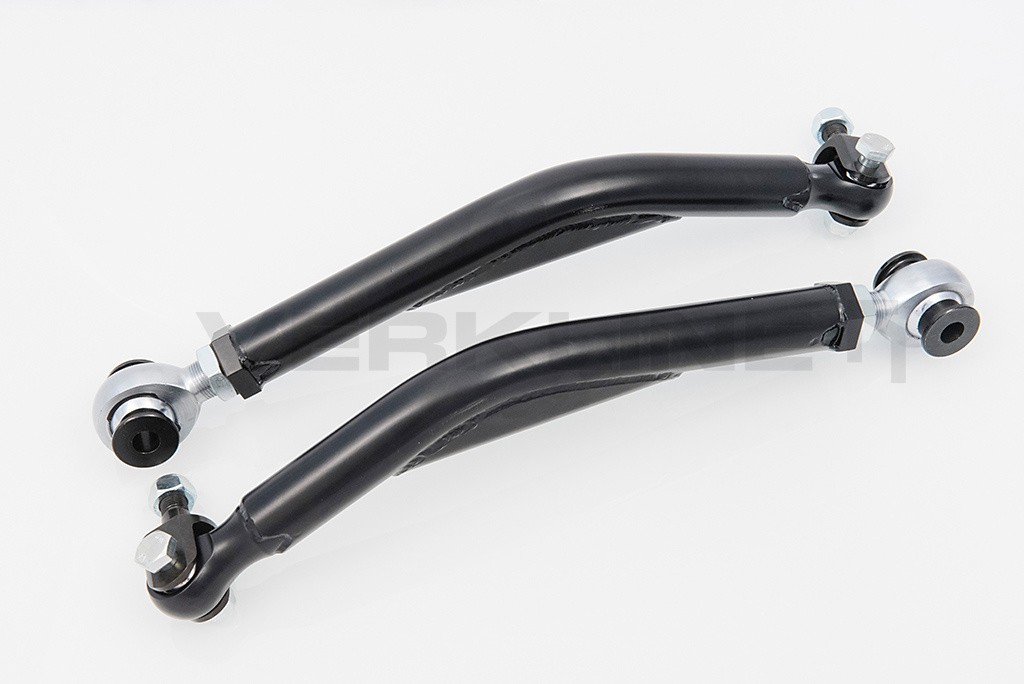

Verkline Adjustable Rear Outrigger Arms R4 – Lancer EVO X
Product Ref: WAS-811
Mitsubishi Lancer EVO X – REAR LONGITUDINAL ARM (Adjustable Rear Outrigger Arm)
The kit consists of:
– Two rear light steel T45 35 mm outrigger wishbones (left + right)
– Two arm fixing C45 steel mounts
– Two M22 rod ends solid Kevlar (motorsport rod ends)
– Two M22 half size screw locking nuts
– Two uniball bearings (motorsport rod ends)
– Eight spacer sleeves for assemble of the arms in the rear subframe
Features:
– R4 spec rear suspension arm
– Comes preassembled ready for fitment in the car
– R4 rally kit compliant (meats FIA homologation rules for Lancer EVO X)
– Same rod end suppler as for original R4 kit
– Can be used with standard rear chassis and uprights pickup points
– Greater strength over OEM wishbones
Technical details
– Full 3D CAD designed
– FEA tested and additional reinforcement to the original design was made
– Manufactured from T45 steel
– Powder coated black
Wishbones are Powder coated in black as standard. Other colour options available at additional cost at customer request. RAL paint code must be provided.
