Verkline Mitsubishi Lancer EVO VII-IX Complete Suspension kit

Description

Verkline Mitsubishi Lancer EVO VII-IX Complete Suspension kit

Product Ref: WAS-900

Mitsubishi Lancer EVO VII-IX Complete Suspension kit.

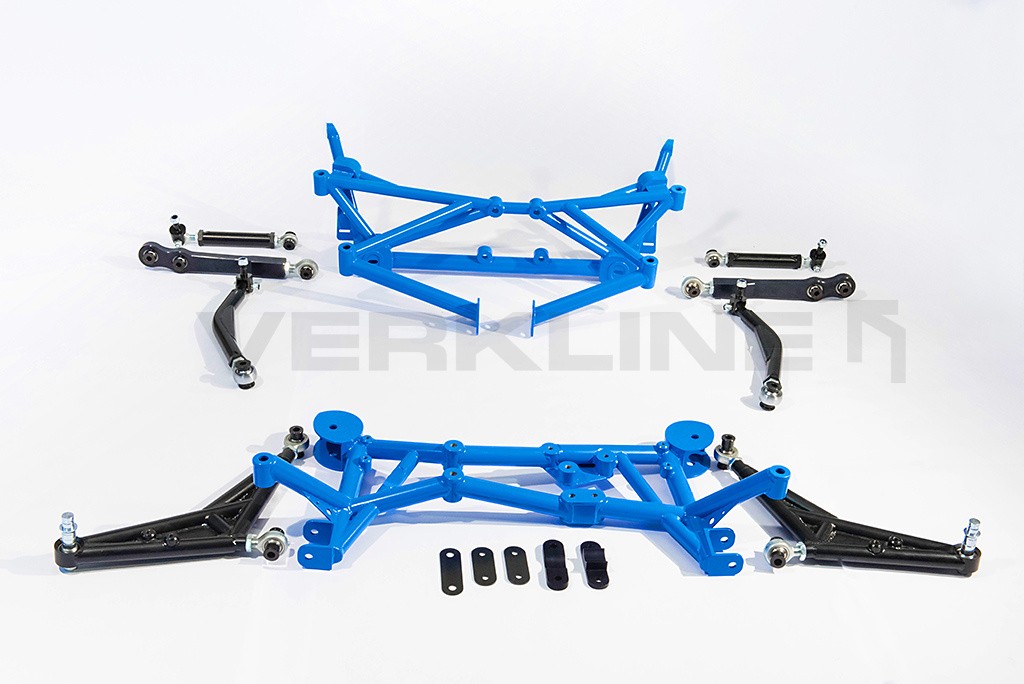

The kit consists of:

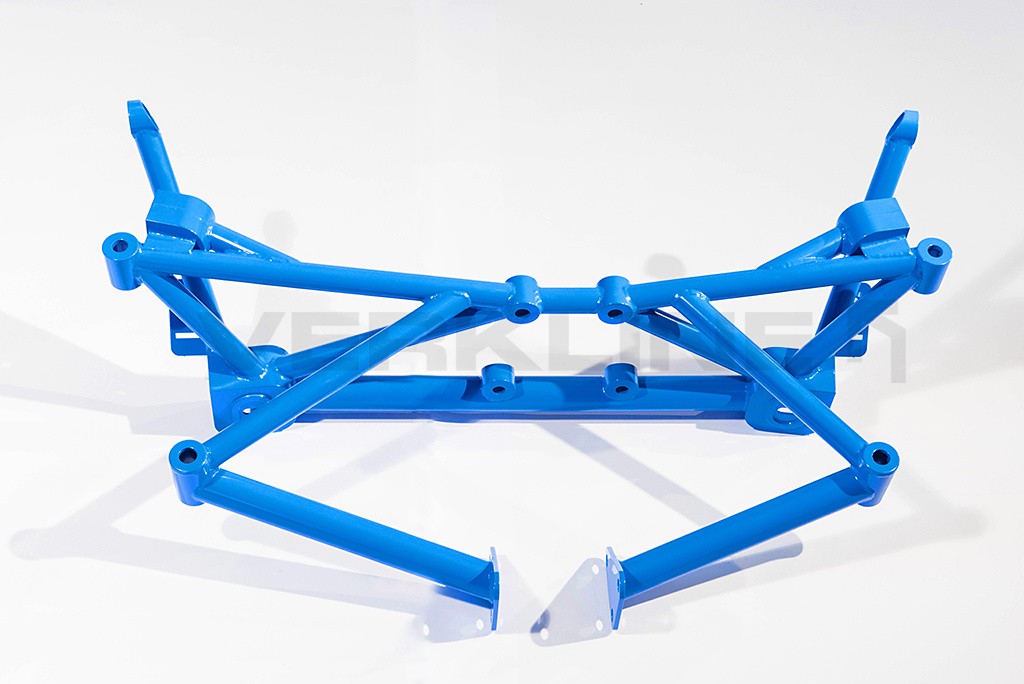

– Front Light Weight Tubular Subframe for LHD cars as standard. RHD version also available on request.

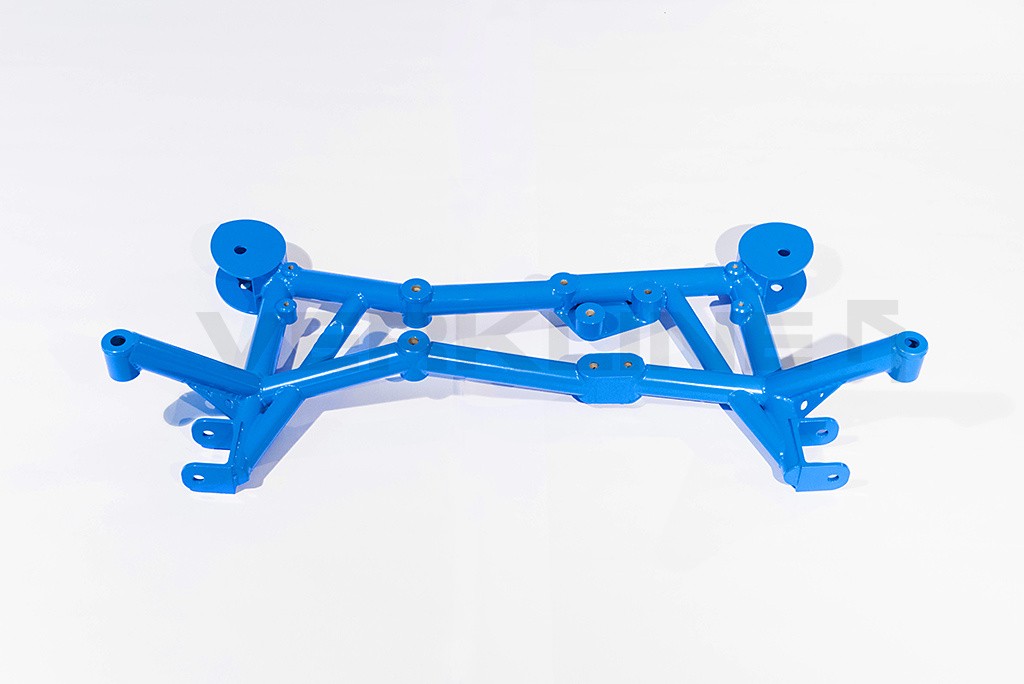

– Rear Light weight Tubular Subframe for RS rear axle

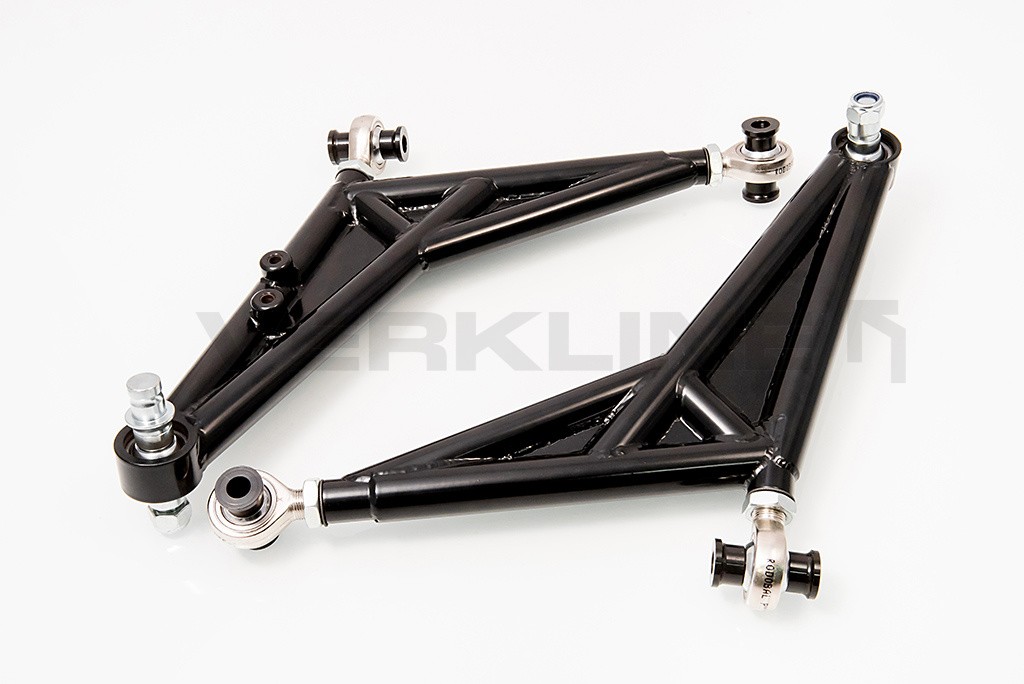

– Front Tubular Adjustable Arms with tilted pin for more suspension travel

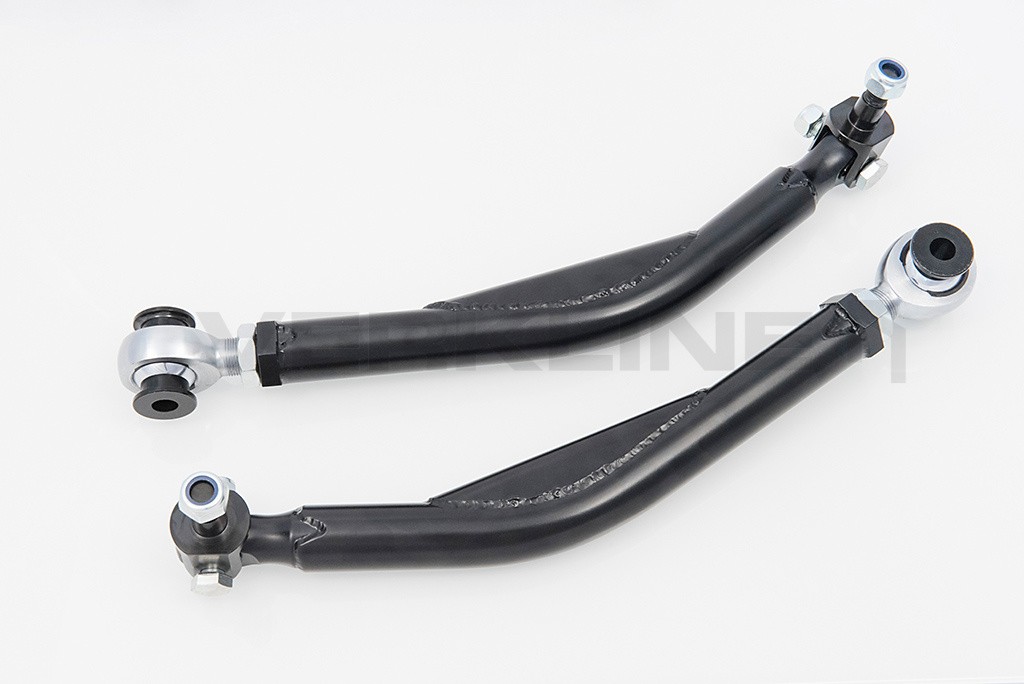

– Adjustable Rear Camber Arms

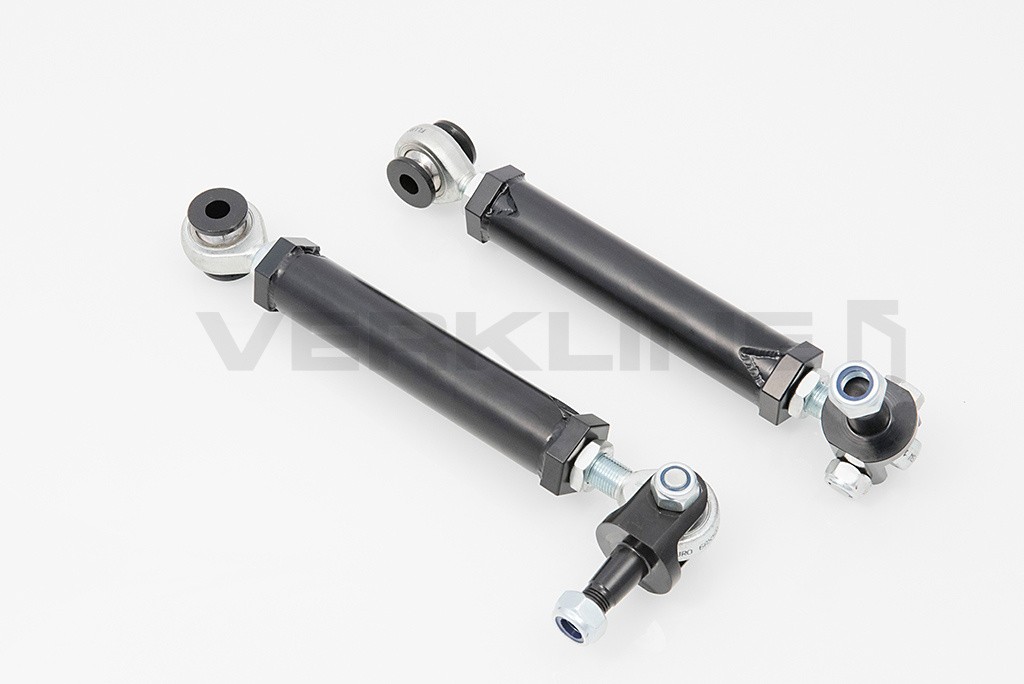

– Adjustable Rear Toe Links

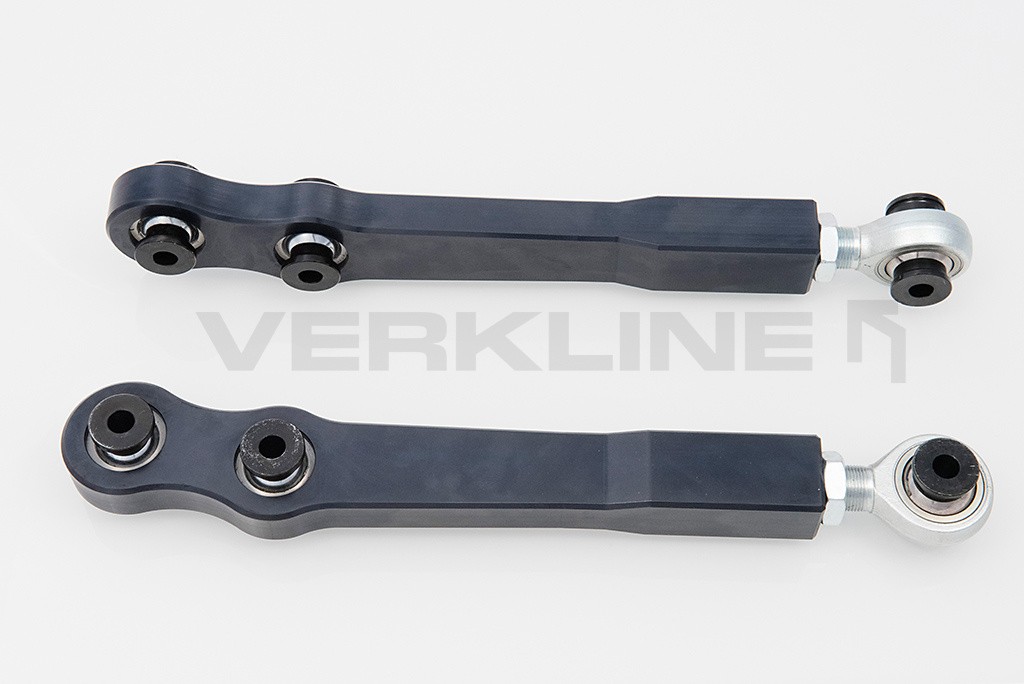

– Adjustable Rear Lowe Trailing Arms

Technical details
– Mountings to the chassis using are on standard attachment points.
– Full 3D CAD designed.
– FEA Tested and additional reinforcement to the original design was made.
– Manufactured fully from T45 tubing and S355 steel to the ultimate strength.
– Rear Camber Arms Manufactured From 7075 Billet Aluminium, Anodized Black.
– All pins made from C45 and Galvanized Silver.
– Tig Welded.
– Motorsport quality Rod Ends. Same as ones used in EVO X R4 kits by MML. Made in Europe, not in China. Competitive companies use Chinese made to lower their cost.

Front and rear tubular subframes provide saving of 25 kg on the car over same OEM components.

Subframes are Powder coated in black as standard. Other colour options available at additional cost at customer request. RAL paint code must be provided

Notice: Front subframe is not compatible with Whiteline 26mm front anti-roll bar.
