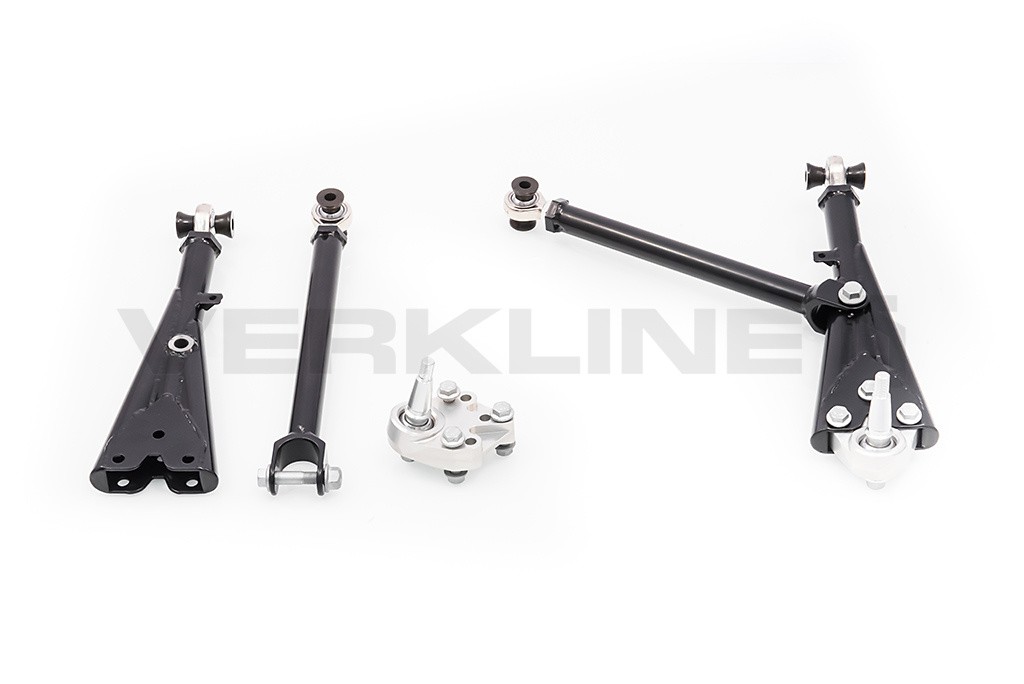

Verkline Adjustable tubular front race lowered wishbones MQB Audi RS3 S3 A3 8V Golf Mk7 Seat Leon 5F

Description

Verkline Adjustable tubular front race lowered wishbones MQB Audi RS3 S3 A3 8V Golf Mk7 Seat Leon 5F Product Ref: WAS-017 When using the car on the track the cornering forces are bending the rubber in the wishbones. Thus changing the desired geometry of the car. This can lead to slower track times and ineffective tyre usage. For that reason Verkline have come up with uniball control arms. Our race wishbones use metal to metal uniball just like used in Porsche RS line (GT2RS, GT3RS). Using same T45 tubing as in WRC cars, Verkline wishbones provide increased stiffness and extra adjustment. All factory parts bolt up to this unit, no other modifications are necessary. Most of the cars used on track are lowered compared to stock. Lowering the car has the undesirable effect of moving the chassis lower than the balljoint and excessive lowering results in the situation where the wishbone is pointing upwards at the wheel end. This means you need more steering lock when cornering, the car is sluggish to respond and doesn’t feel as communicative. To correct this and achieve the best kinematics of front suspension, you should use the sleeves included in the kit. They change the kinematics of the suspension, changing the position of the turnover centres of the components. Product functionalities: – Adjustment both caster and camber (up to -4.5 degrees) – no rubber to bend, you will not loose the geometry set when doing alignment – works with OEM subframe and Verkline tubular subframe – enables removal of the wishbones without the need for removal of the subframe Features: – T45 (BS4T45 to BS4T100) tubing imported from UK and S355 metal sheets – proven motorsport M18 uniballs (the same type used in Verkline Lancer EVO X kits) – plug and play to use with the car inc xenon sensors What is included: – two (pair) front wishbones (control arms) with all hardware for install – set of spacers to reposition the steering rack and front anti-roll bar. Both 20 mm up. See picture bellow. – four rubber caps for uniball protection Used in cars (type numbers in brackets): 2013 – Audi A3/S3/RS3 (8V and 8VFL MQB) 2014 – Audi TT/TTS/TTRS (8S) 2012 – Volkswagen Golf/GTI/R (Mk7 MQB) 2012 – Seat Leon (5F MQB) Other MQB-based cars T45 is a very unique seamless carbon based steel tube that has been used in many applications in different industries. It is stronger than Co-Mo 4130 tubing that also used in motorsport. It is widely used in the aerospace sector in equipment such as pilot’s seats and crew’s seats due to the materials ability to withstand high G forces without snapping or splitting. This material is a Carbon Manganese based and conforms to the full Aerospace Specification laid down by British Standards. Properties Tensile: 700 – 900MPa, 0.2% Yield 620MPa minimum Hardness Test: 201min – 262 max HB or 210min – 275max HV. Note: Sold only for off road, race track and racing applications. If the buyer wants to use the parts elsewhere it is up to them to arrange appropriate documents. Lowered wishbones can be used only together with our tubular subframe. Additional information – benefit of using Verkline lowered version of the wishbones. One of the first things to do in improving stock car cornering performance is lowering its centre of gravity, by decreasing its ride height. Unfortunately, it also changes negatively original suspension geometry and kinematics. To prevent it, Verkline wishbones and subframe combo provides modified suspension mounting points, which corrects bump steer and roll centre for better car handling and responsiveness. Besides correction of roll centre height, it also helps with camber gain (change of camber angle within suspension travel). In circuit racing, priority is to optimize it, to reduce positive camber in corners for better grip and that is what our additional mounting provides. To address this issue Verkline have come up with a wishbones + subframe set. WAS-011-7 The front mount of the wishbone is lowered on the subframe mount. Lower mount hole is standard height, higher mount hole is to be used with Verkline lowered wishbones. Replaces: – 5Q0407151 and 5Q0407152 – 81A407151C and 81A407152C – 8S0407151D + 8J0407365 or 8J0407366 – 8S0 407 151 B (left/right) – 8S0 407 151 D (left/right) IMPORTANT NOTICE: Sold only for off road, race track and racing applications. If the buyer wants to use the parts elsewhere it is their responsibility to arrange appropriate documents and approvals. We strongly advise to mount the subframe in a qualified and experienced workshop.
